High Voltage Modules
Range of high-voltage modules with fixed polarity and bypolar output. Fixed polarity modules are available with outputs up to 30kV, positive or negative polarity. Bipolar modules with true zero-crossing output available with outputs up to +/-10kV. Modules are made to order without minimal order requirements and customizable

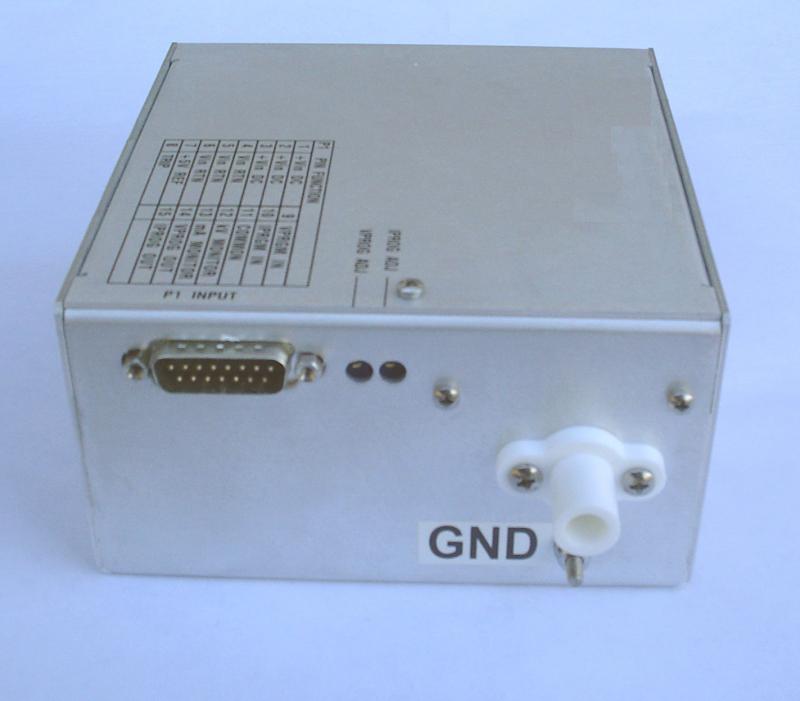

Series 05 High Voltage Modules 9W Fixed Polarity 1kV, 10kV, 30kV
Series 05 (S05) high-voltage modules designed to provide 9W power with output voltages up to 30kV in positive ( 0 up to +30,000V) or negative (0 up to -30,000V) polarity. This series of high-voltage modules features corona-free operation, low ripple and noise, 0.001% load regulation, 50ppm temperature coefficient, and self-recovering output protection from short-circuit and overcurrent.

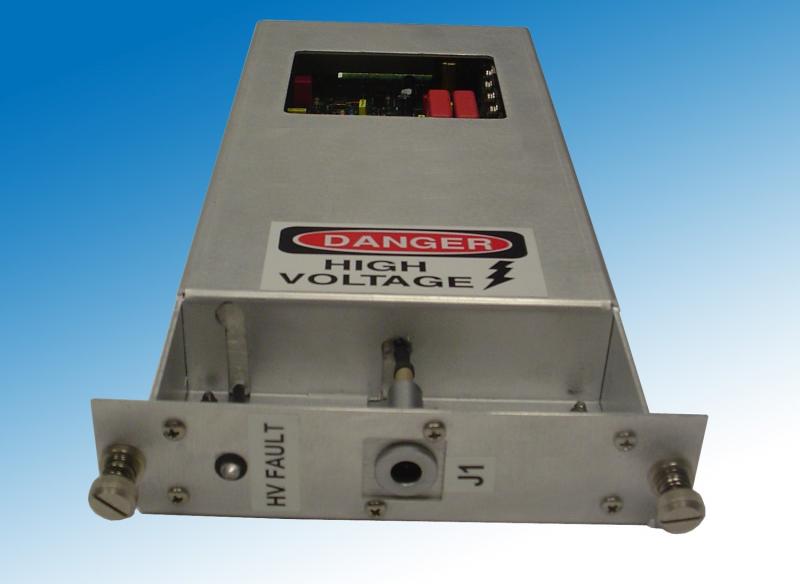

FPM Series Fast High Voltage Modules Current Source/Sink
FPM series of high-voltage modules is a family of regulated, fixed polarity, high voltage DC power supply modules with 1mSec fast output settling time, offering up to 1kHz bandwidth in focused ion beam and electron beam control applications. Unique feature of these modules is current source and sink capability, offering exceptional design flexibility for ion and electron beam control and deflection applications. Flexible configuration of output voltage and current parameters is providing exceptional performance and value for many applications, including but not limited to lasers, mass-charge spectrometers, charged particle detectors, scientific imaging, mass spectrometers, research, ion and electron beam control and instrumentation.
Series SPMA High Voltage Power Modules, Dual Polarity +/-10kV
Enter a detailed description of your product or service. You can add as much text as you like, and even add images to illustrate your offering. Tell your visitors why they should buy from you! Add a new section for each product or service.
